Mini Multifunctional Cross Working Table For Drilling Tools

Name: Mini Multifunctional Cross Working Table For Drilling Tools
Brand: Tradefast Global
SKU: 9028874439390
Price: 33.4 GBP
Availability: InStock
Rating: 0 (0 reviews)

by Tradefast Global >

£33.40

Free Shipping

Qty:

All details

About This Item

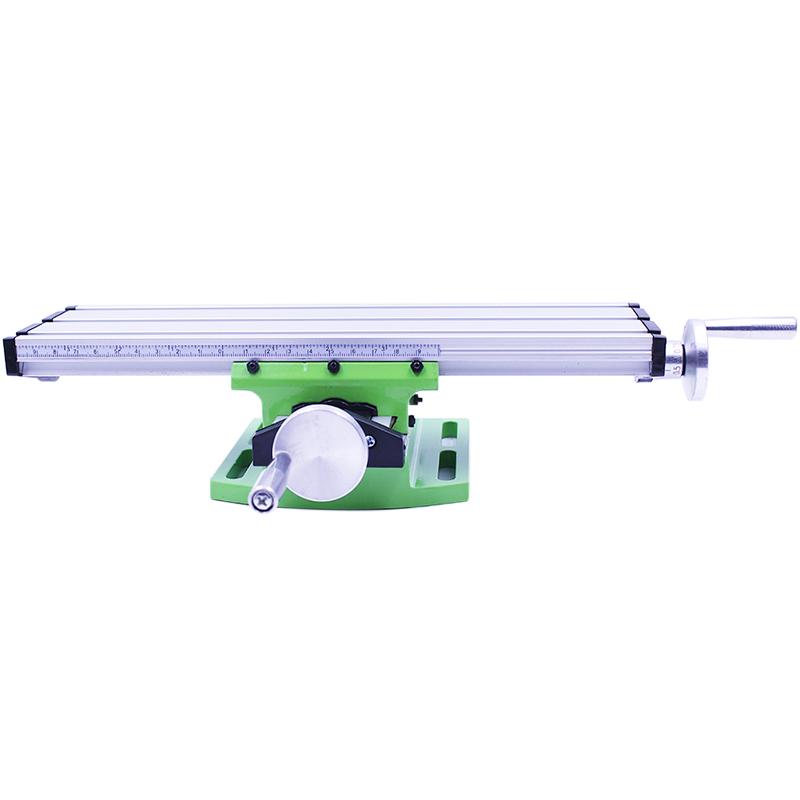

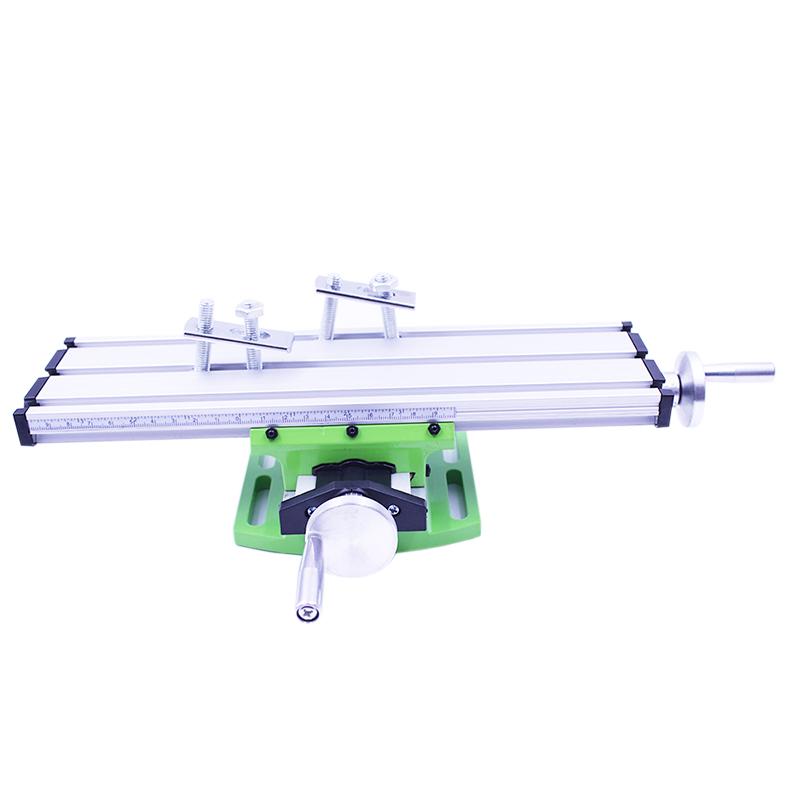

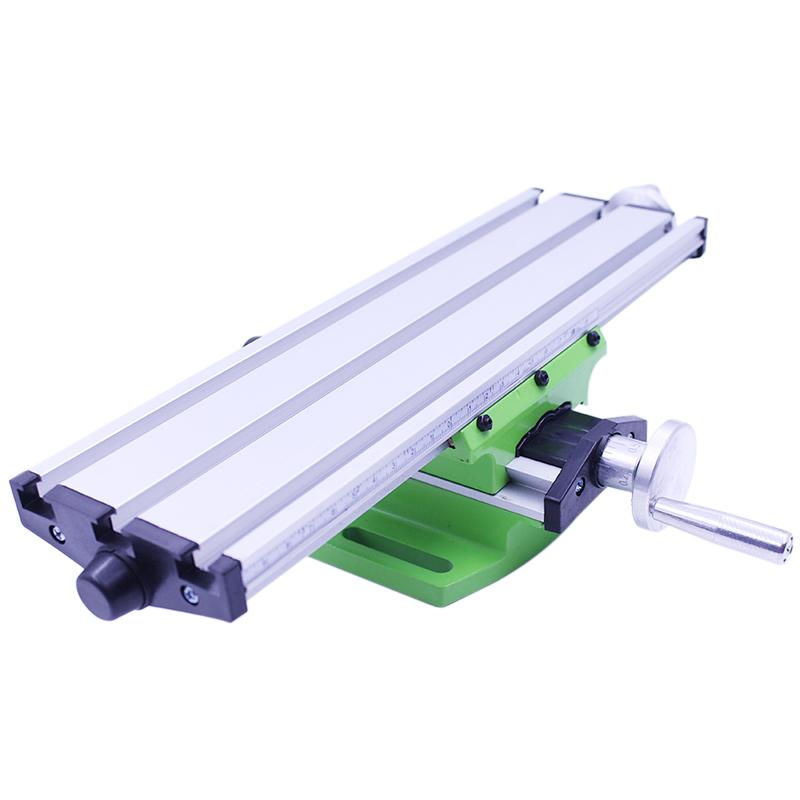

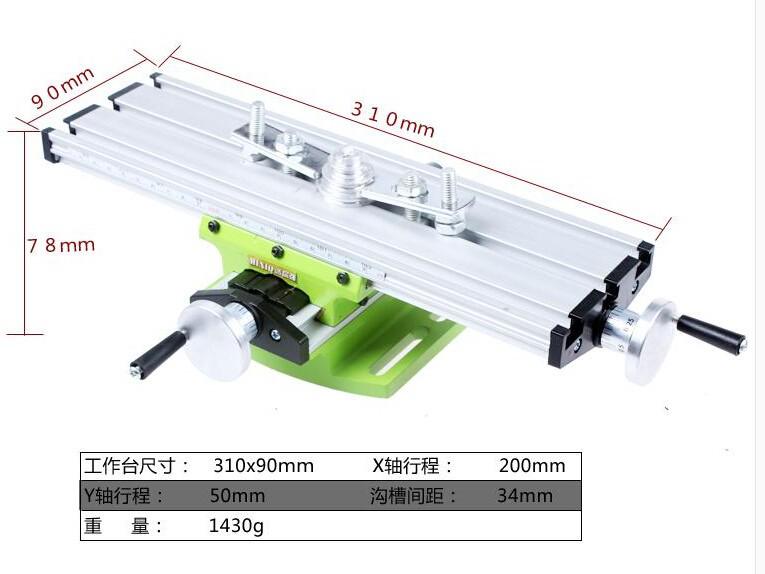

Mini multifunctional working table BG6300. The table is suitable for Mini Drill and drill bracket series. It can also apply to other suitable machine. The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy. The working table with three T shaped groove groove, standard size is 15X8X6mm. Scale is in front of the movable positioning. Zero adjustment handwheel rotates a circle of 1.25mm. A lattice is equal to 0.05mm. The X axis Y axis distance is 200mm, the stroke is 50mm. Working table size is 310X90mm and the height of 80mm, including two working clamp.Mounting hole distance: two holes 9.3 cm away from the nearest is the middle is 9.8 cm, the distance is 11.2 cm
